Look into these outstanding features:

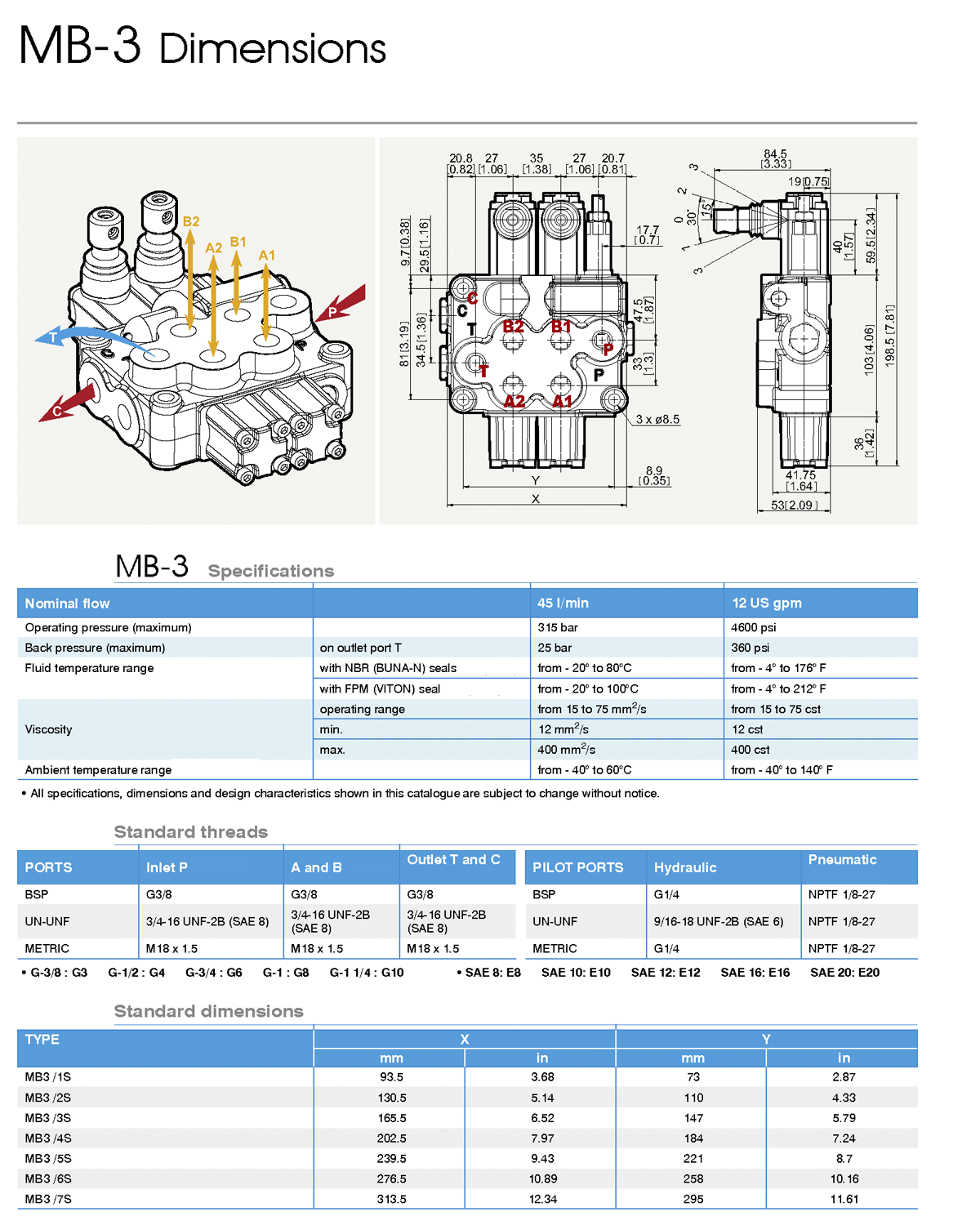

Nominal Flow Rate | 45 L/min (MB-3) | 12 US gpm | |
---|---|---|---|
Operating Pressure (Maximum) | parallel or tandem circuit | 315 bar | 4600 psi |
series circuit | 210 bar | 3050 psi | |
Back Pressure (Maximum) | on outlet port T | 25 bar | 360 psi |
Fluid Temperature Range | with NBR(BUNA-N) seals | from -20°C to 80°C | from -4 °C to 176°F |
with FPM(VITON) seal | from -20° C to 100°C | from -4°C to 212 °F | |
Viscosity | operating range | from 15 to 75 mm²/s | from 15 to 75 cst |
min. | 12 mm ²/s | 12 cst | |
max. | 400 mm²/s | 400 cst | |
Ambient Temperature Range | from -40°C to 60°C | from -40°C to 140°F |
